Pall Sanitary Product Transfer Skid w/ Johnson/Viking Lobe Pump, Micro Motion Coriolis, ABB VFD, 4× Pneumatic Valves — 480V

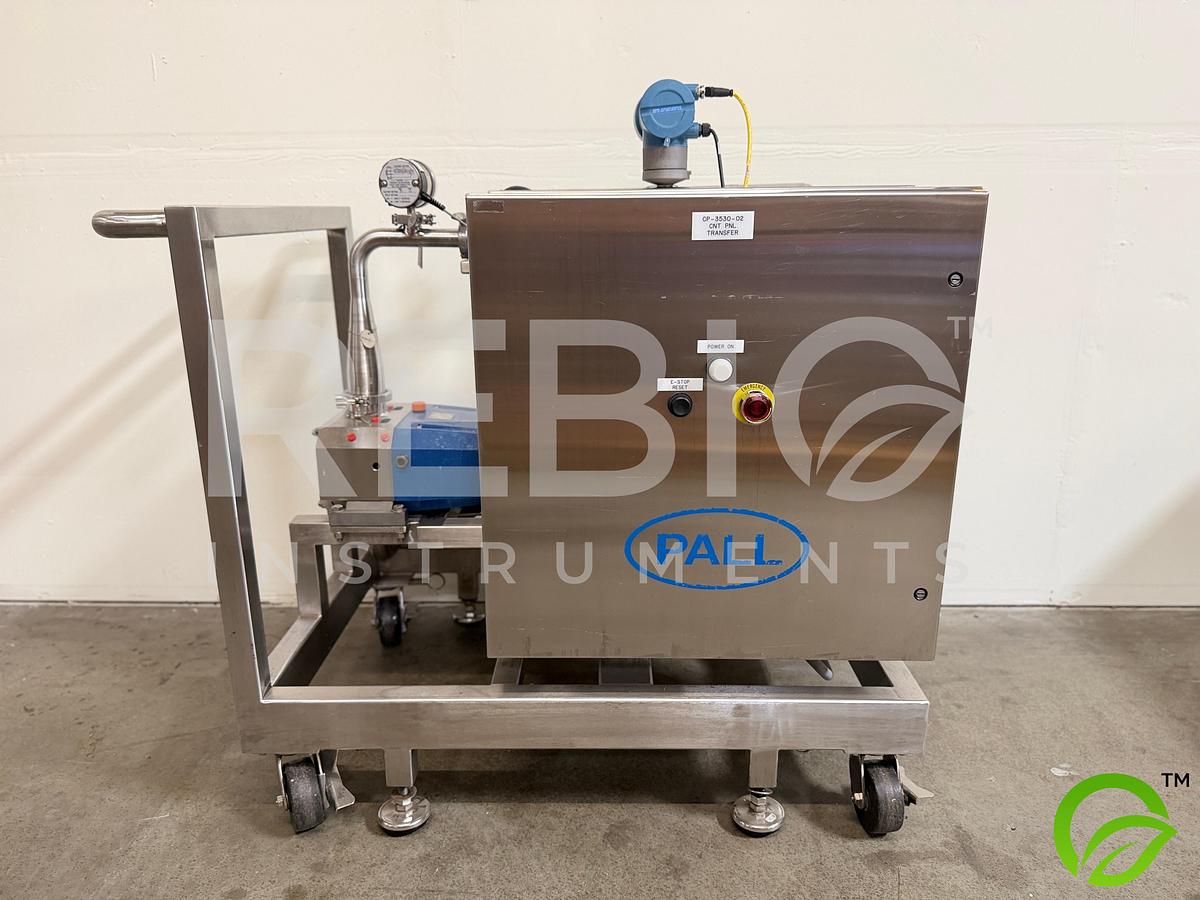

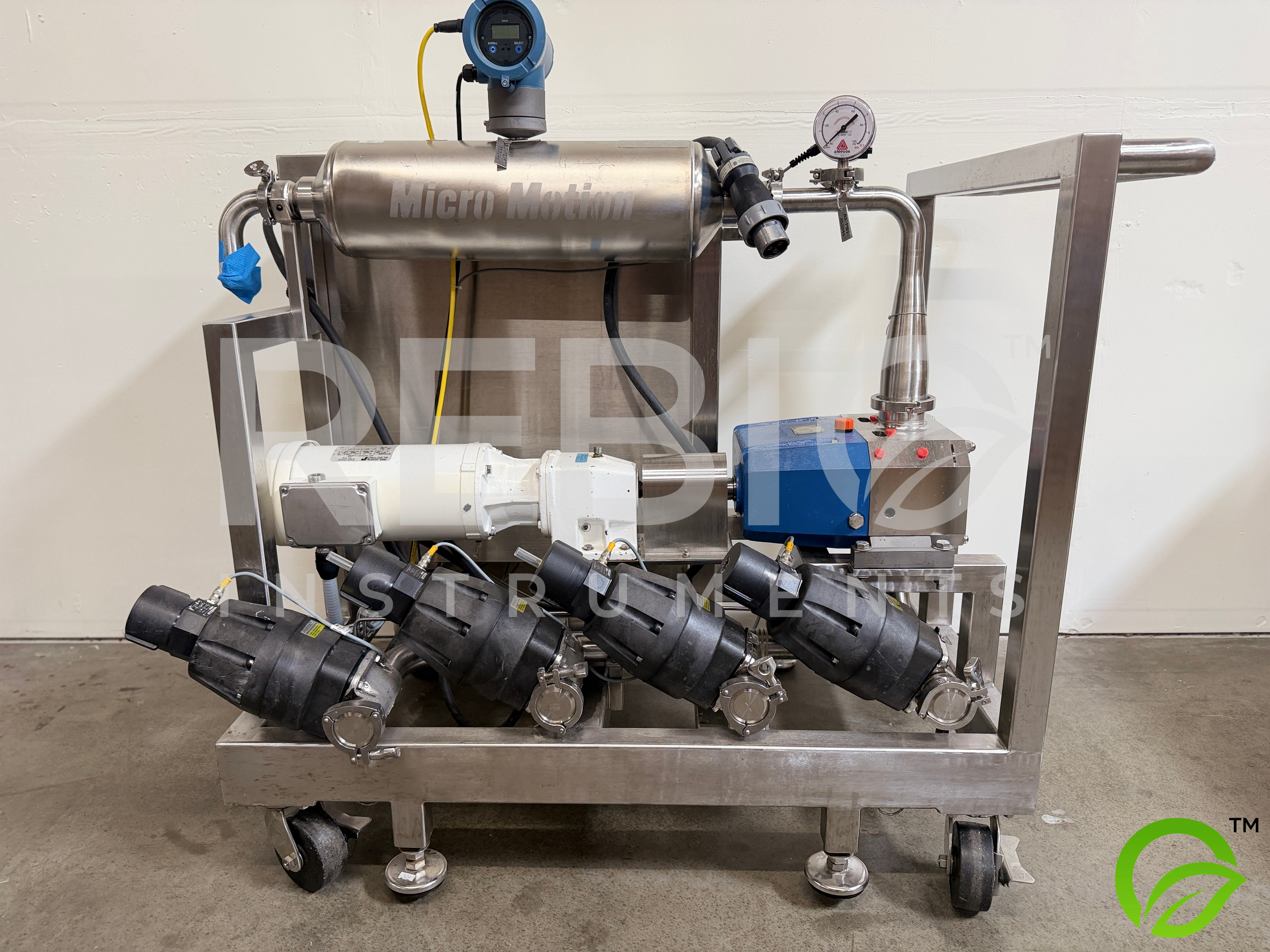

Pall Corporation Sanitary Fluid Transfer Skid — Pharmaceutical/Biotech Grade

Skid-mounted hygienic fluid transfer system originally built for Pall Corporation, designed for sanitary product transfer, batch metering, and controlled fluid routing in pharmaceutical, biopharmaceutical, food, dairy, or beverage manufacturing.

Key Components:

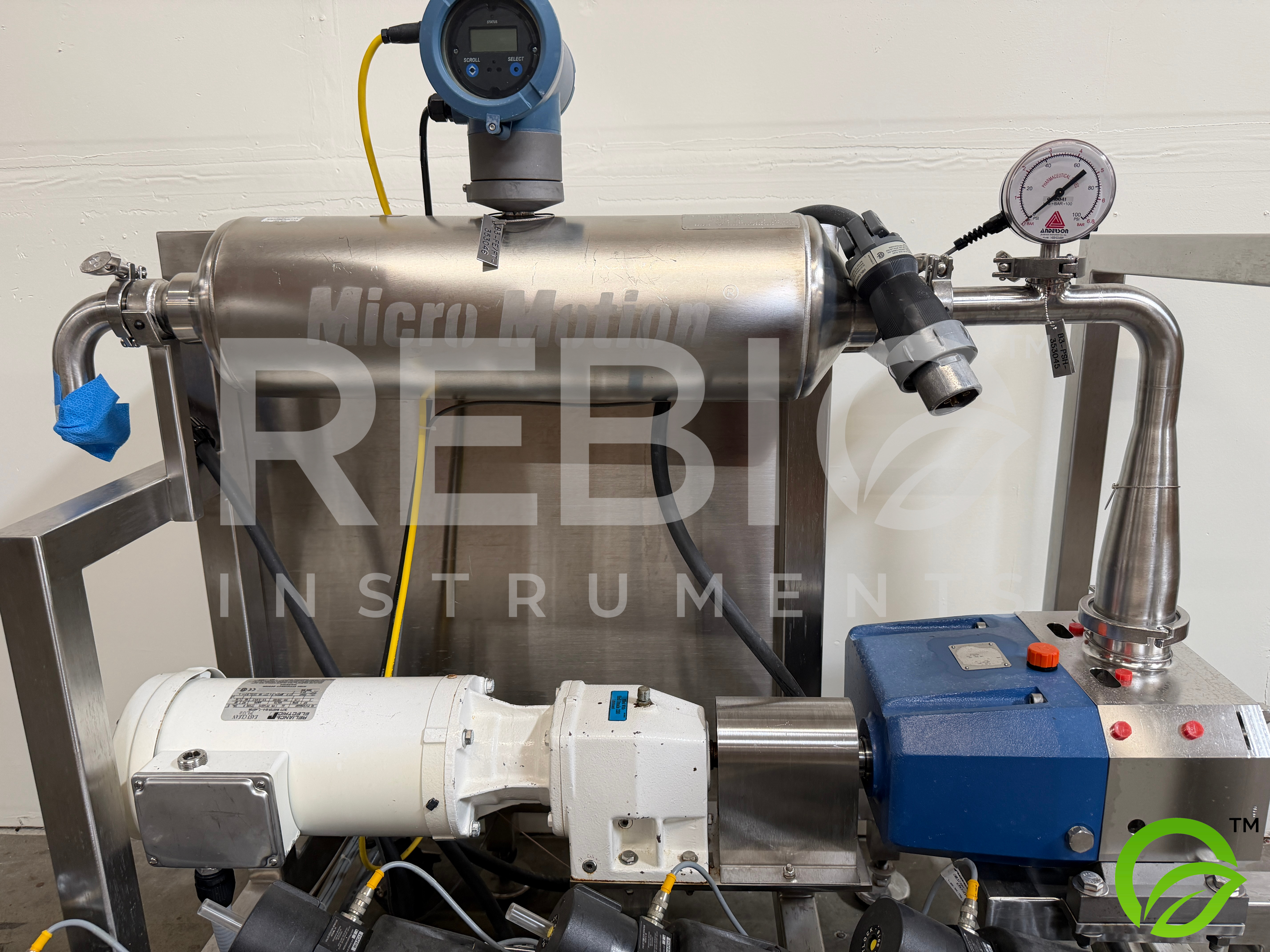

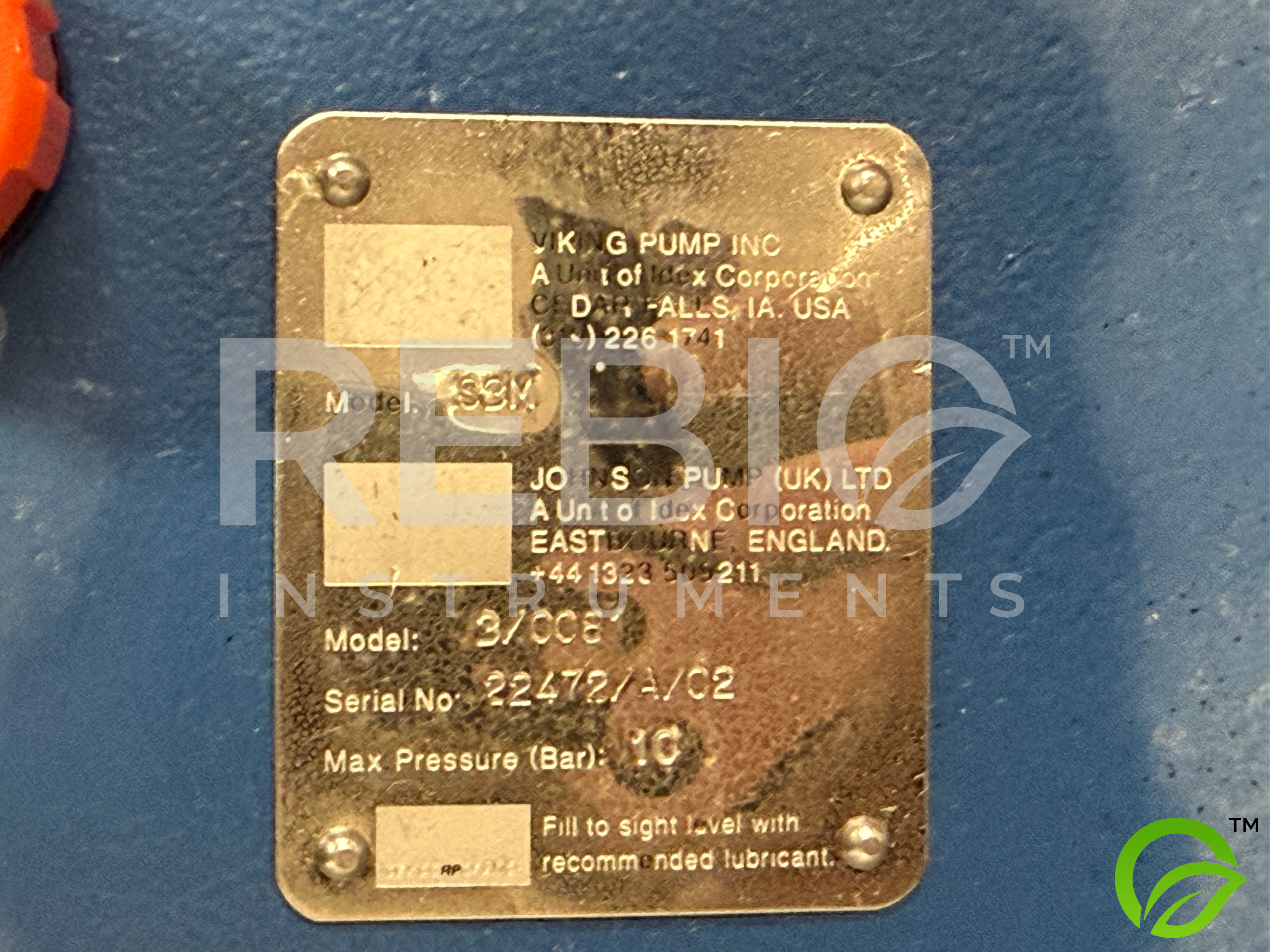

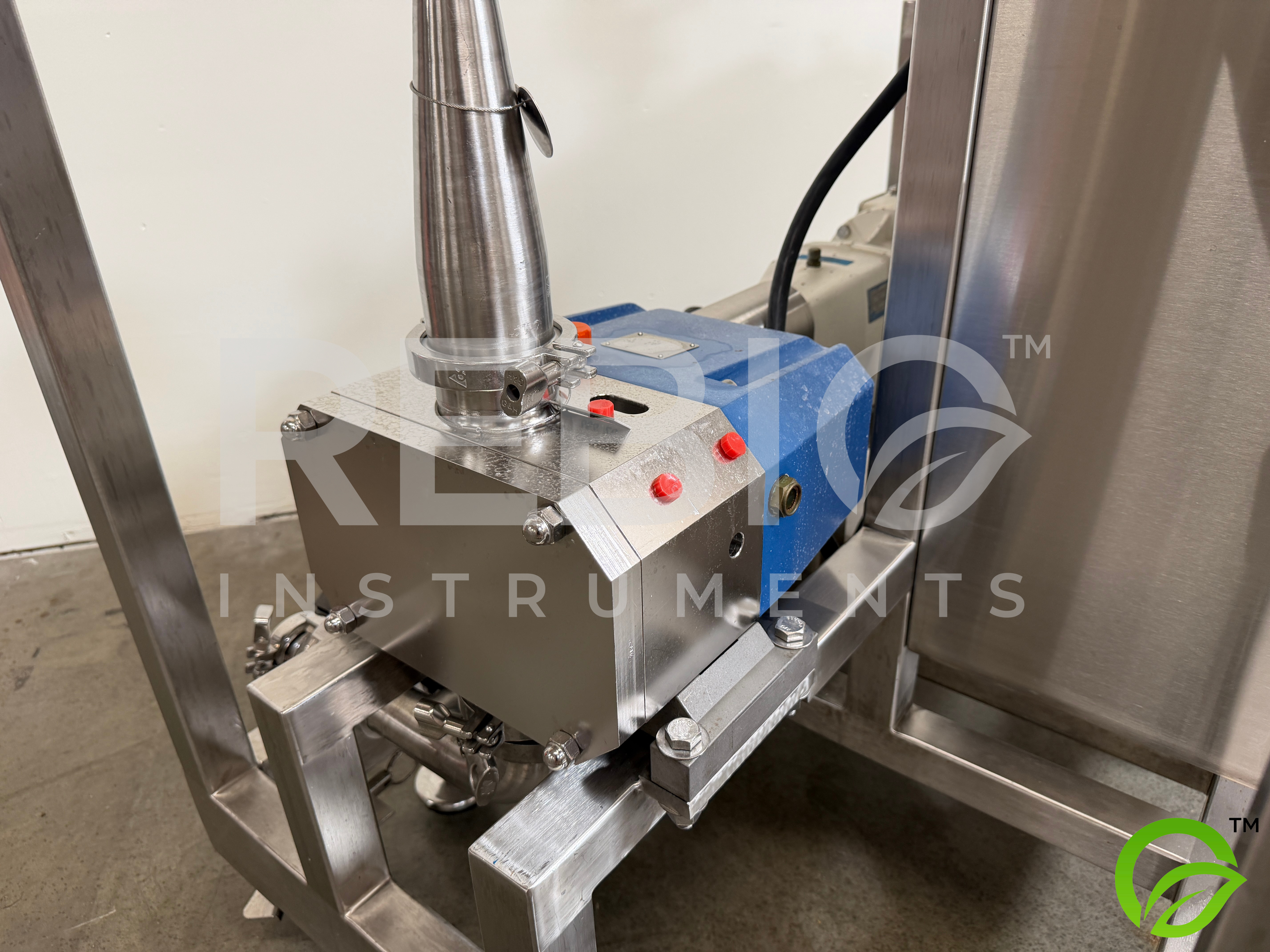

• Johnson Pump / Viking Pump (IDEX) Model B/0061 sanitary lobe pump (10 bar max pressure, manufactured in Eastbourne, UK)

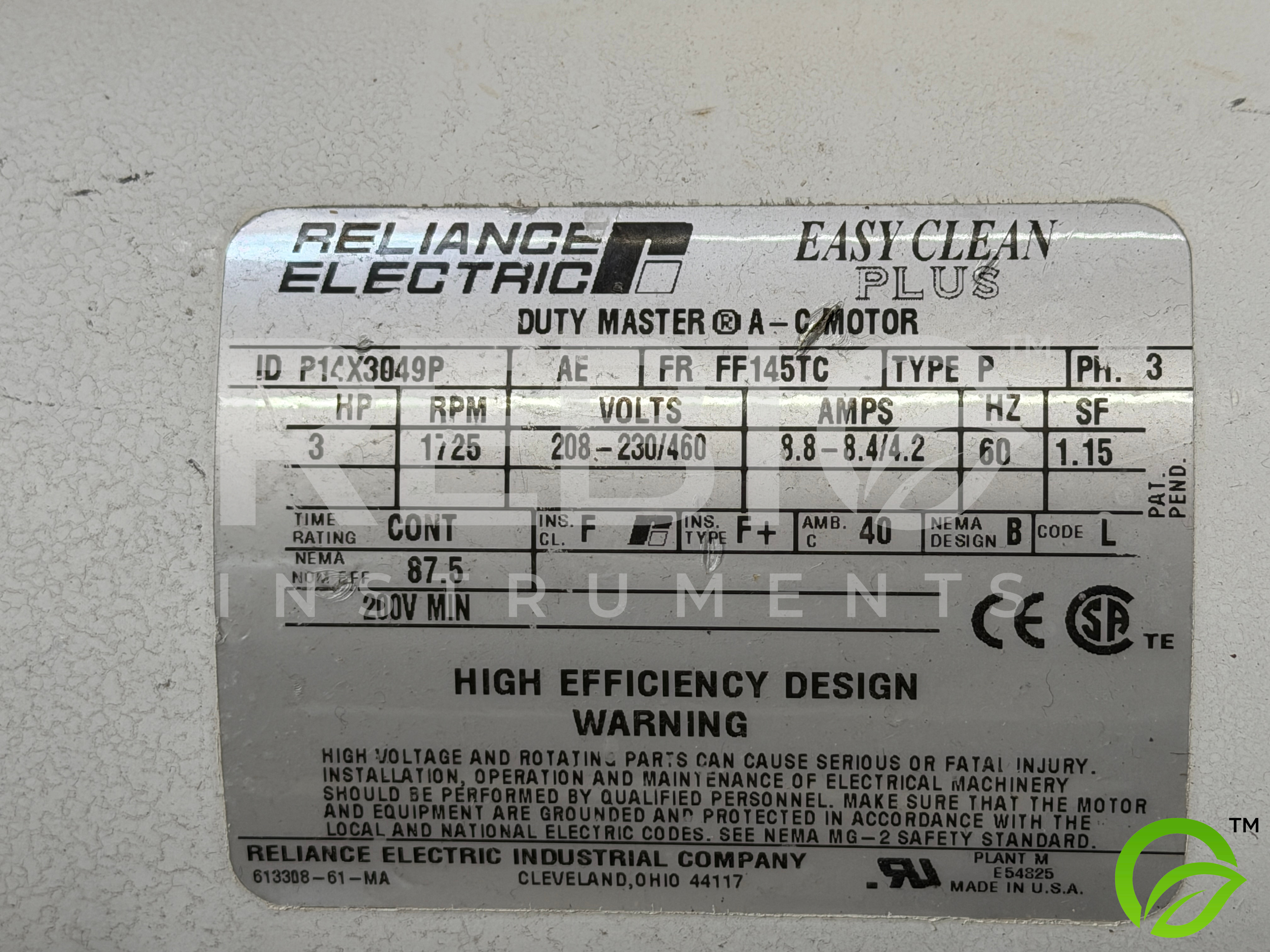

• Reliance Electric Easy Clean Plus Duty Master 3HP AC motor (208-230/460V 3-phase, 1725 RPM, NEMA Frame 145TC, washdown-rated, IP-protected)

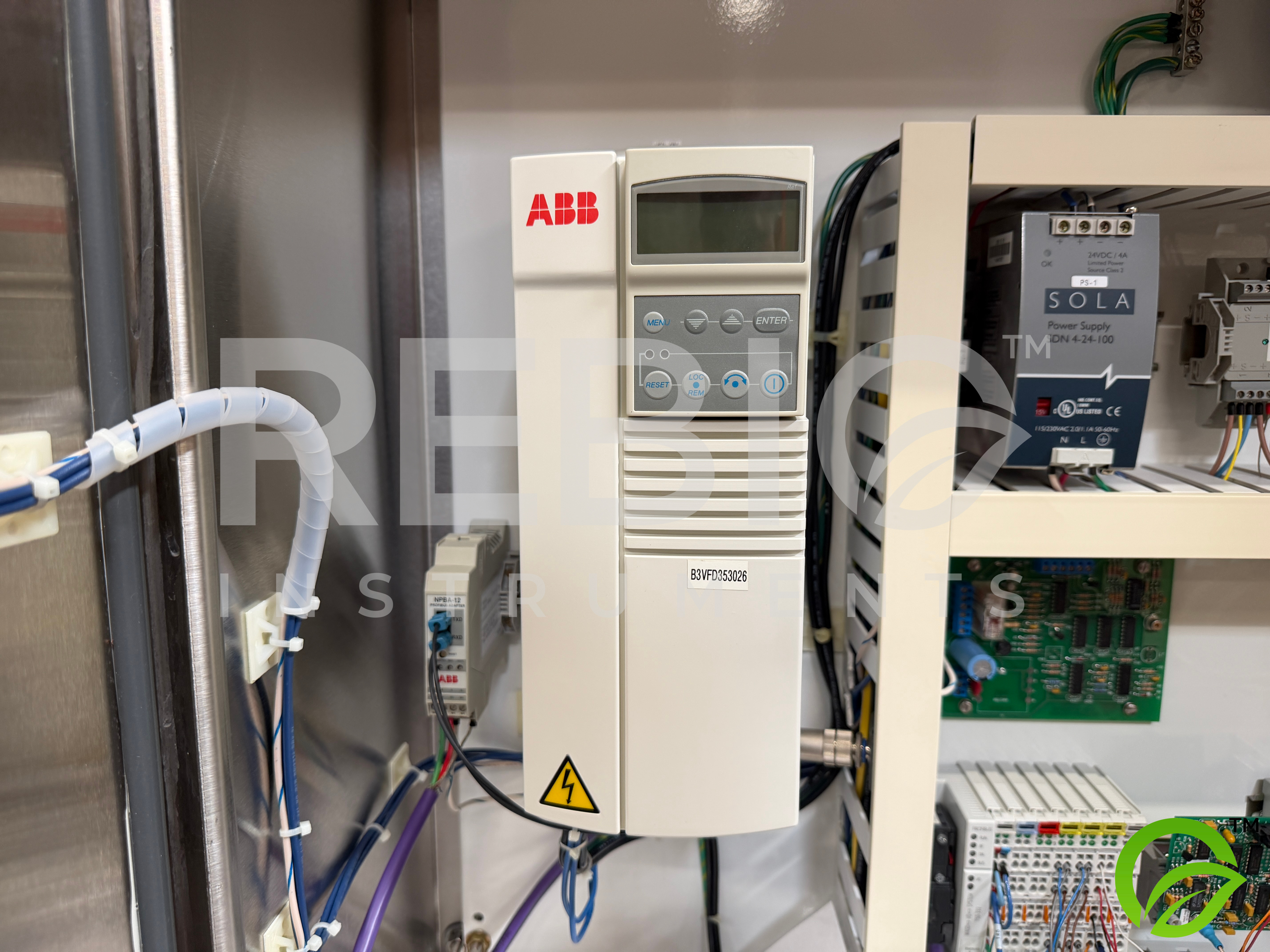

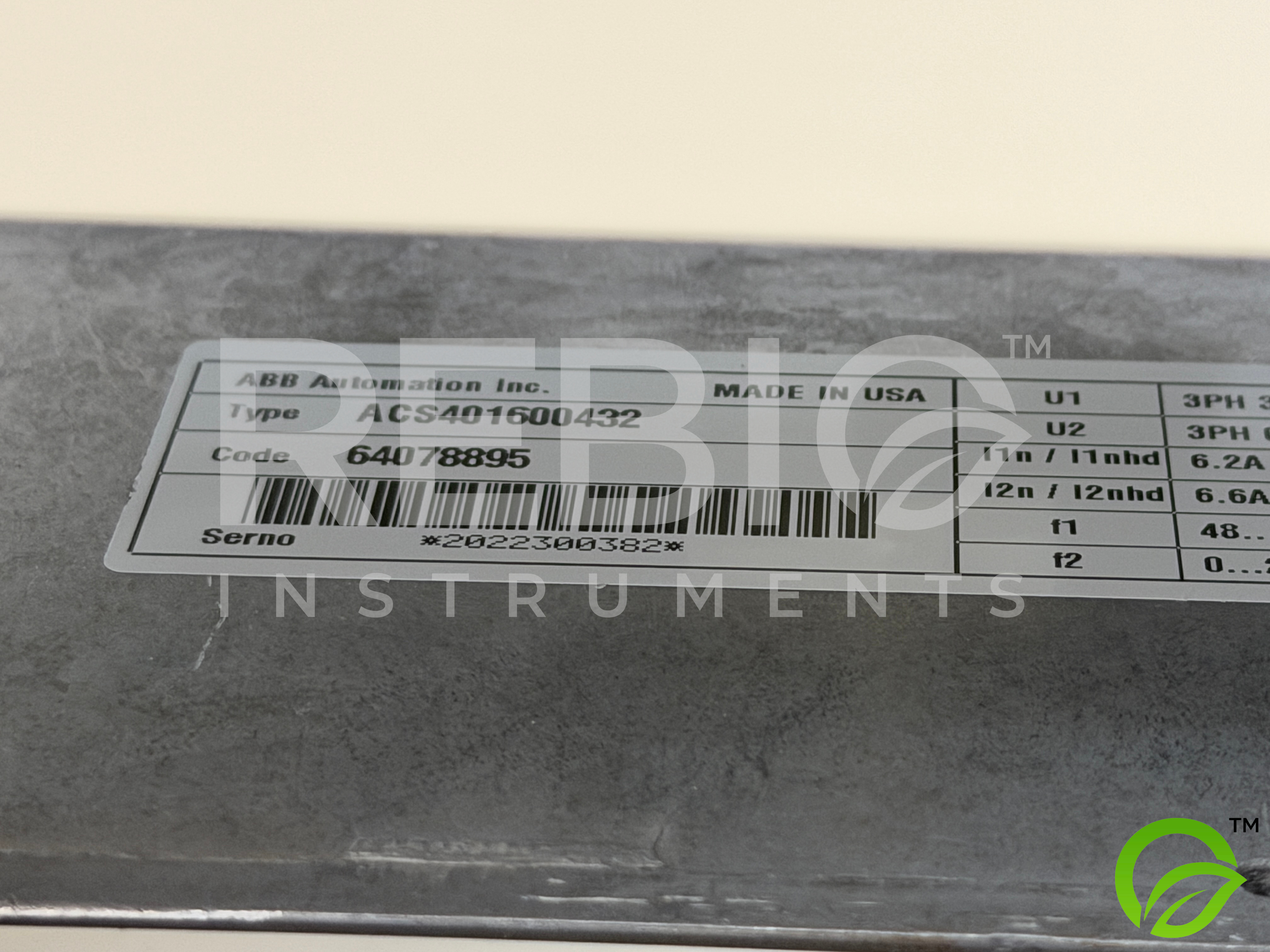

• ABB Automation ACS401 variable frequency drive (3-phase, 6.6A output, made in USA)

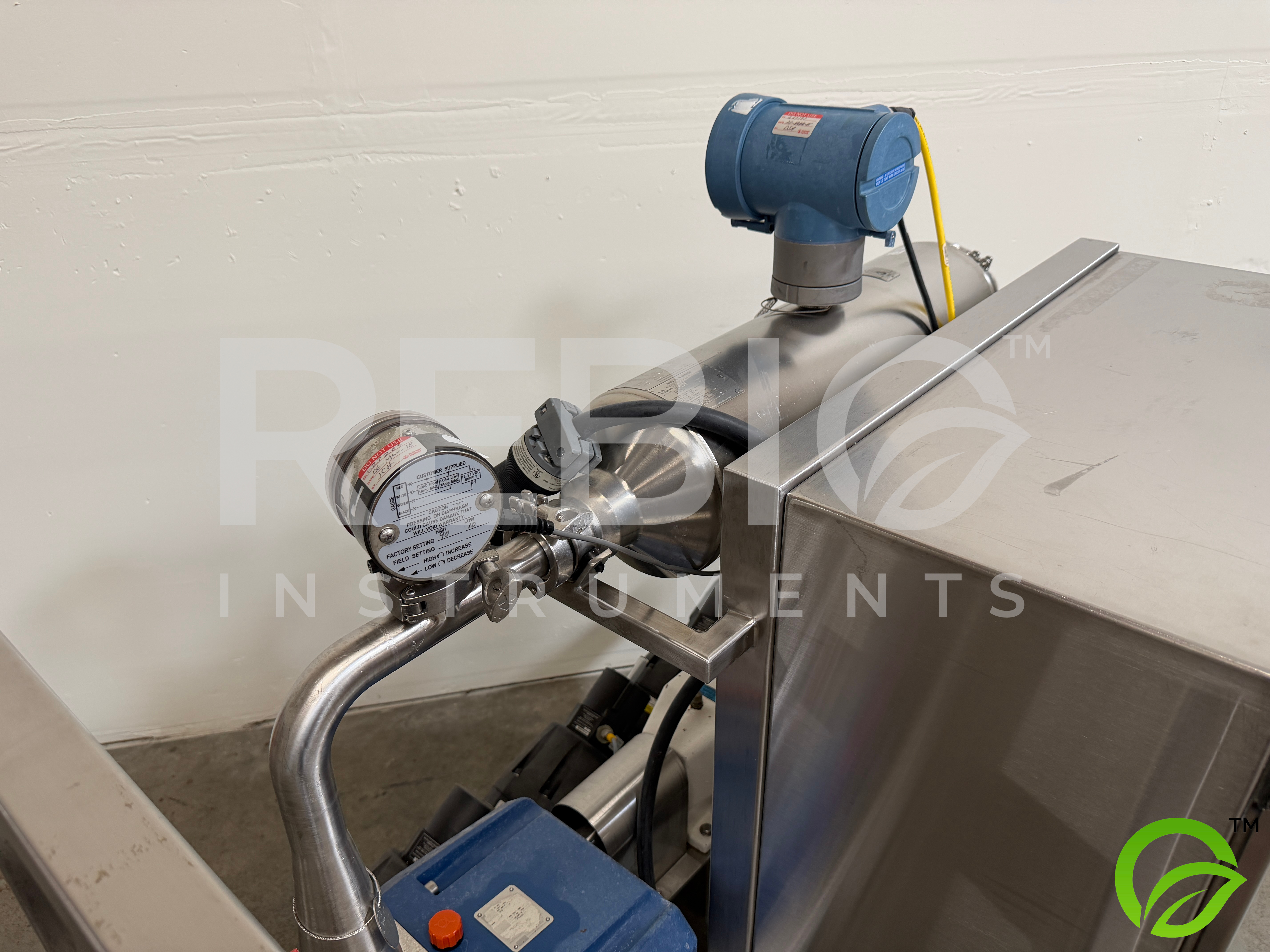

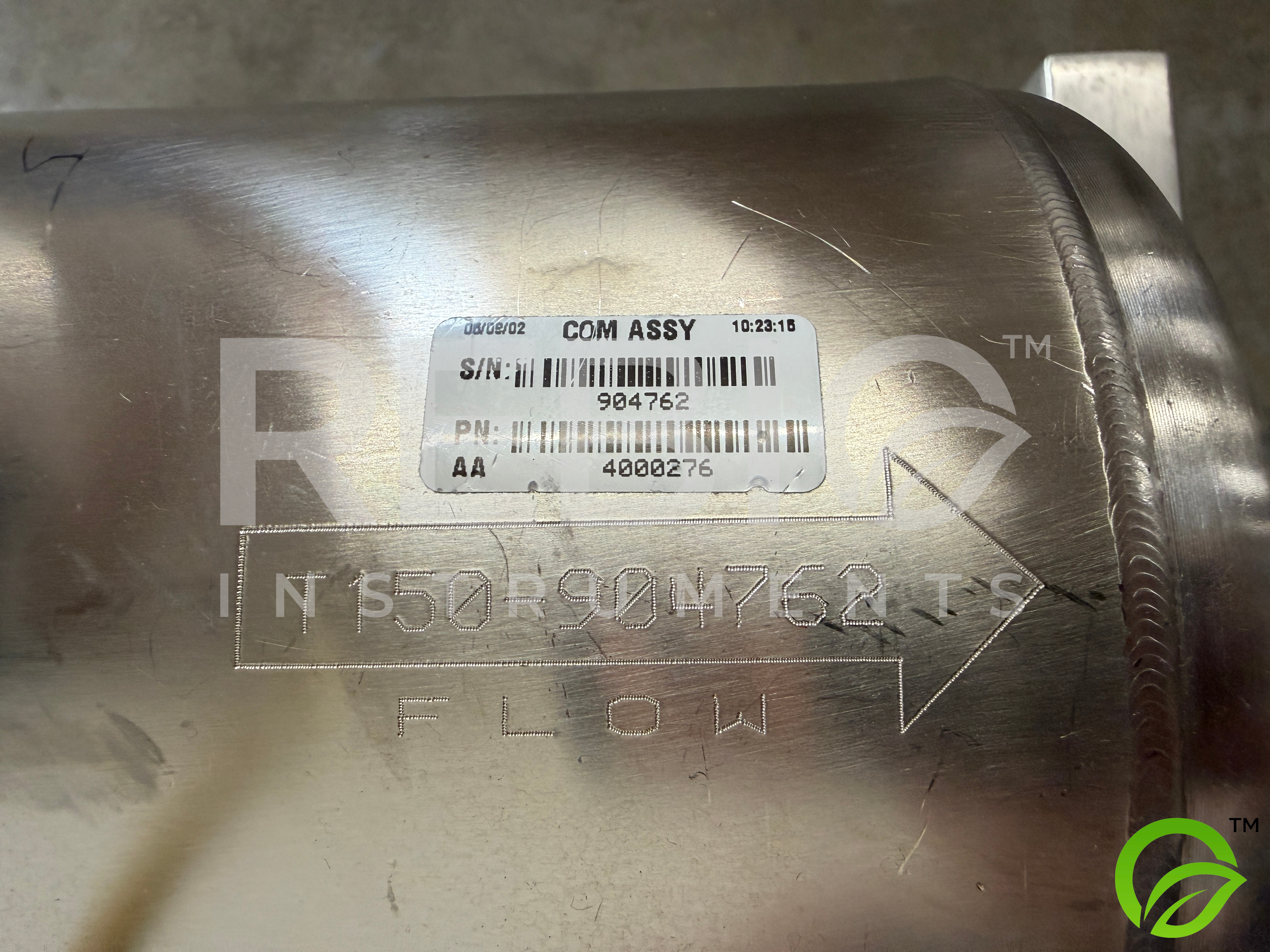

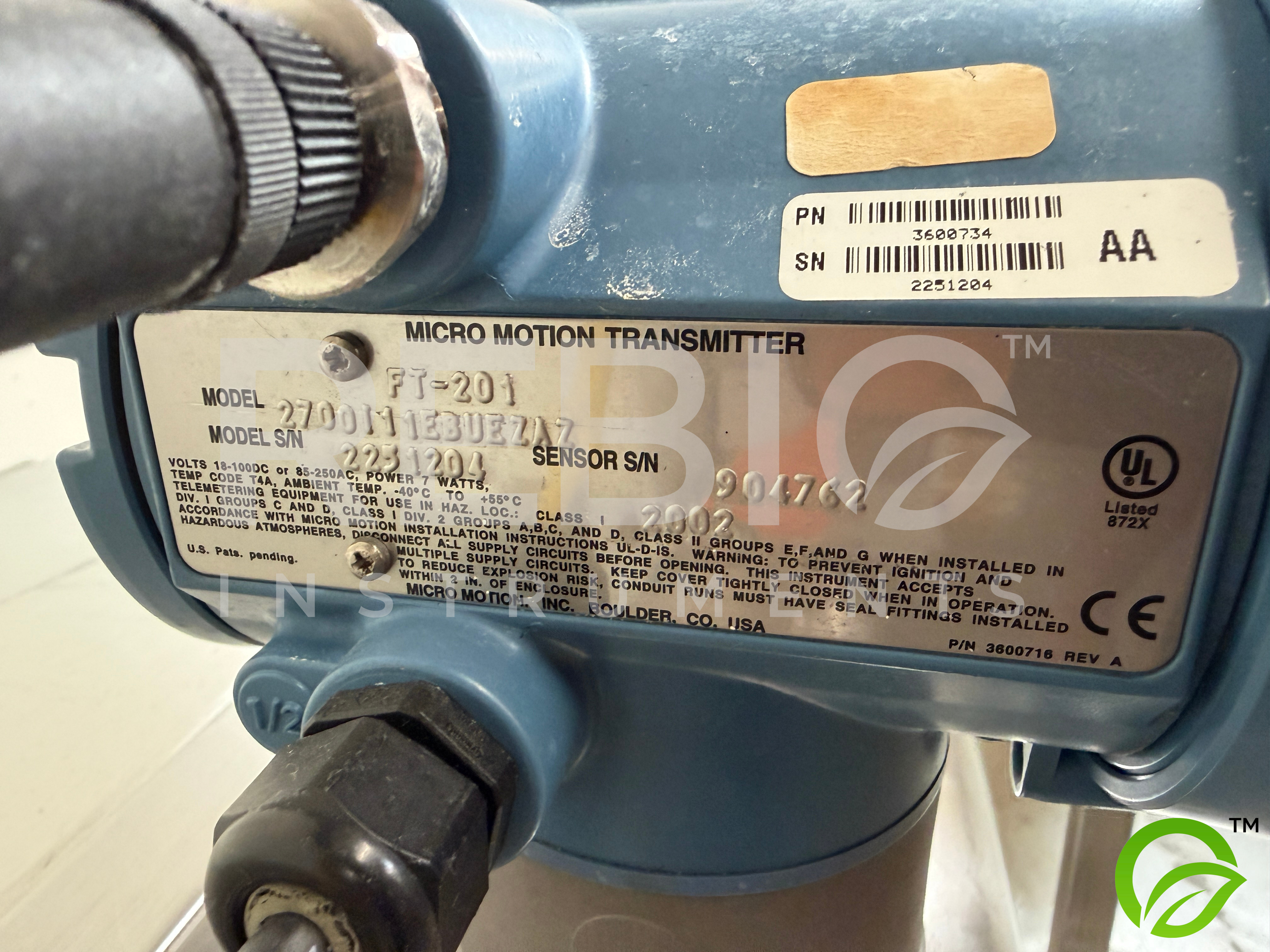

• Emerson Micro Motion 2700I11EBUEZAZ Coriolis mass flow transmitter with sensor (Class I Div 1/2 hazardous location rated, year 2002)

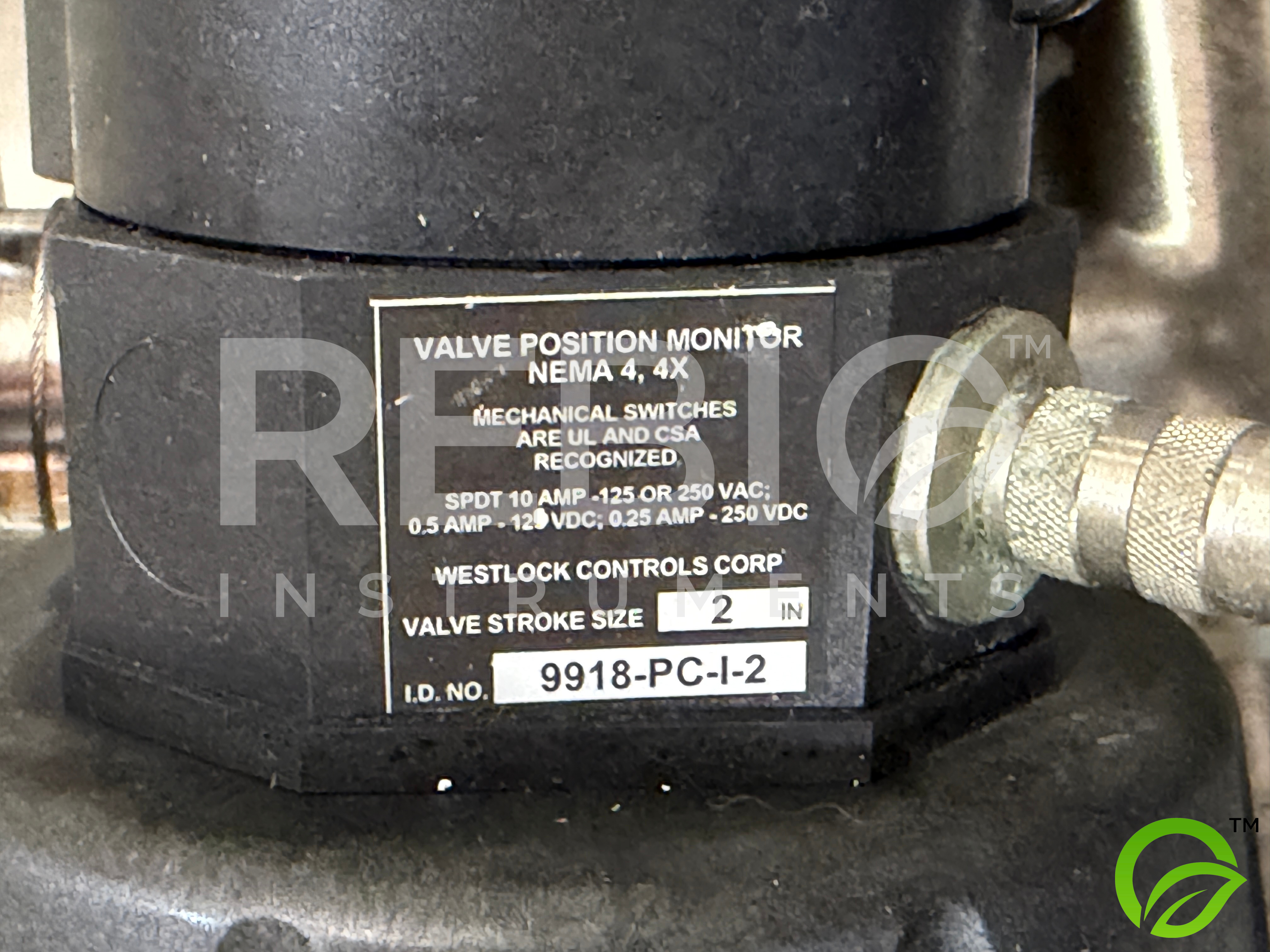

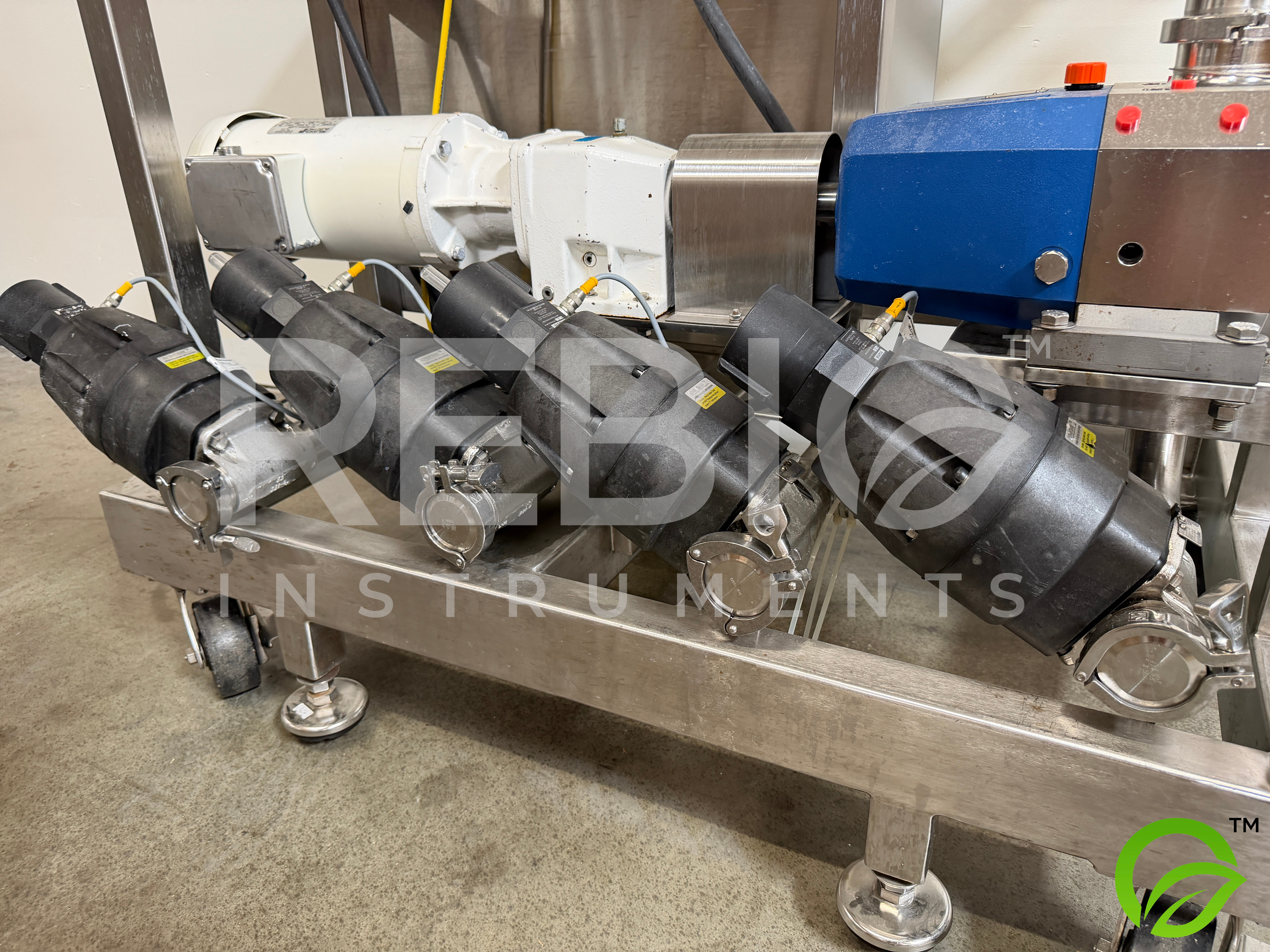

• 4× pneumatic sanitary diaphragm valves with Westlock Controls valve position monitors (NEMA 4/4X)
• Rosemount-style pressure transmitter (top-mounted, jacketed)

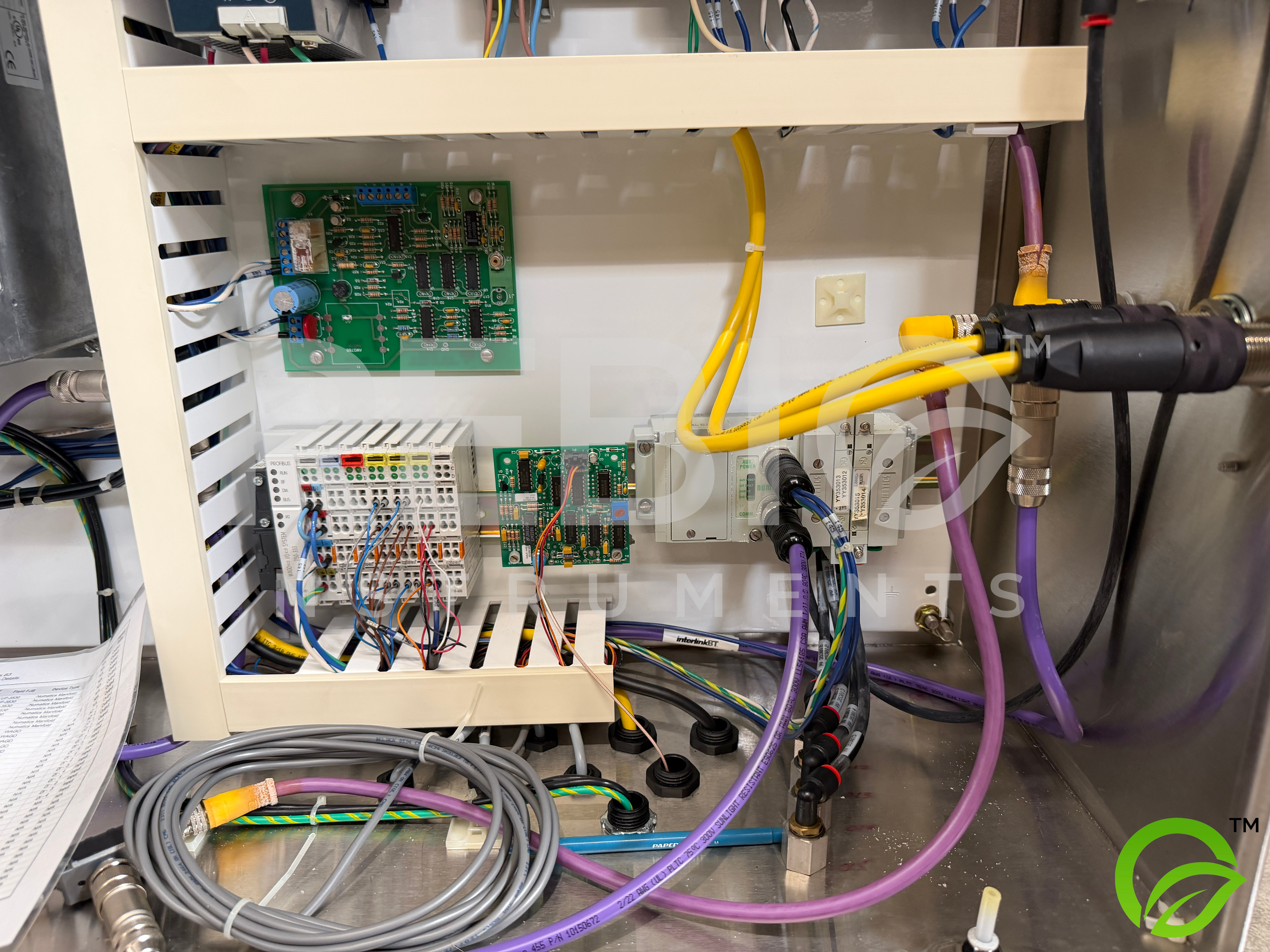

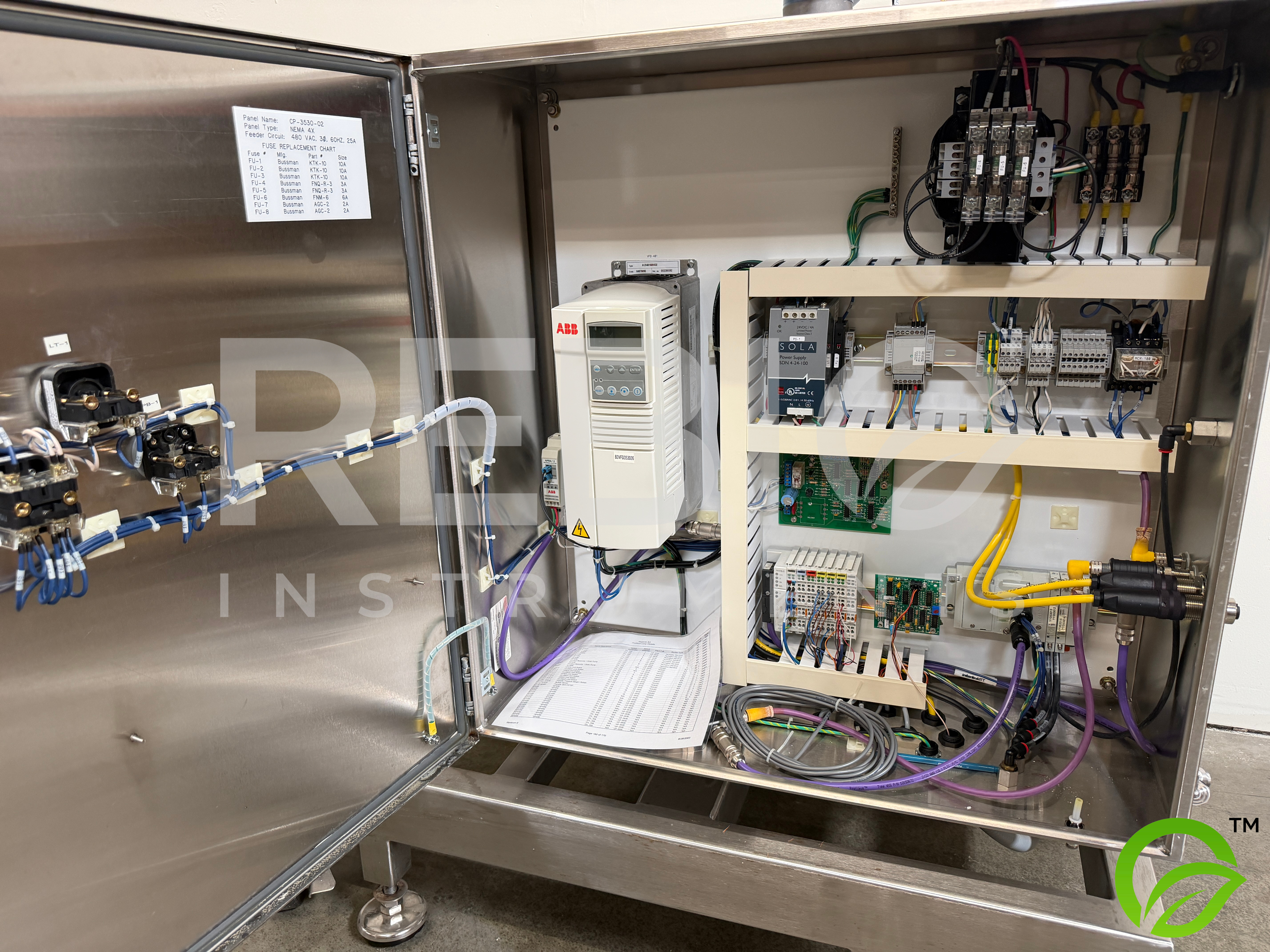

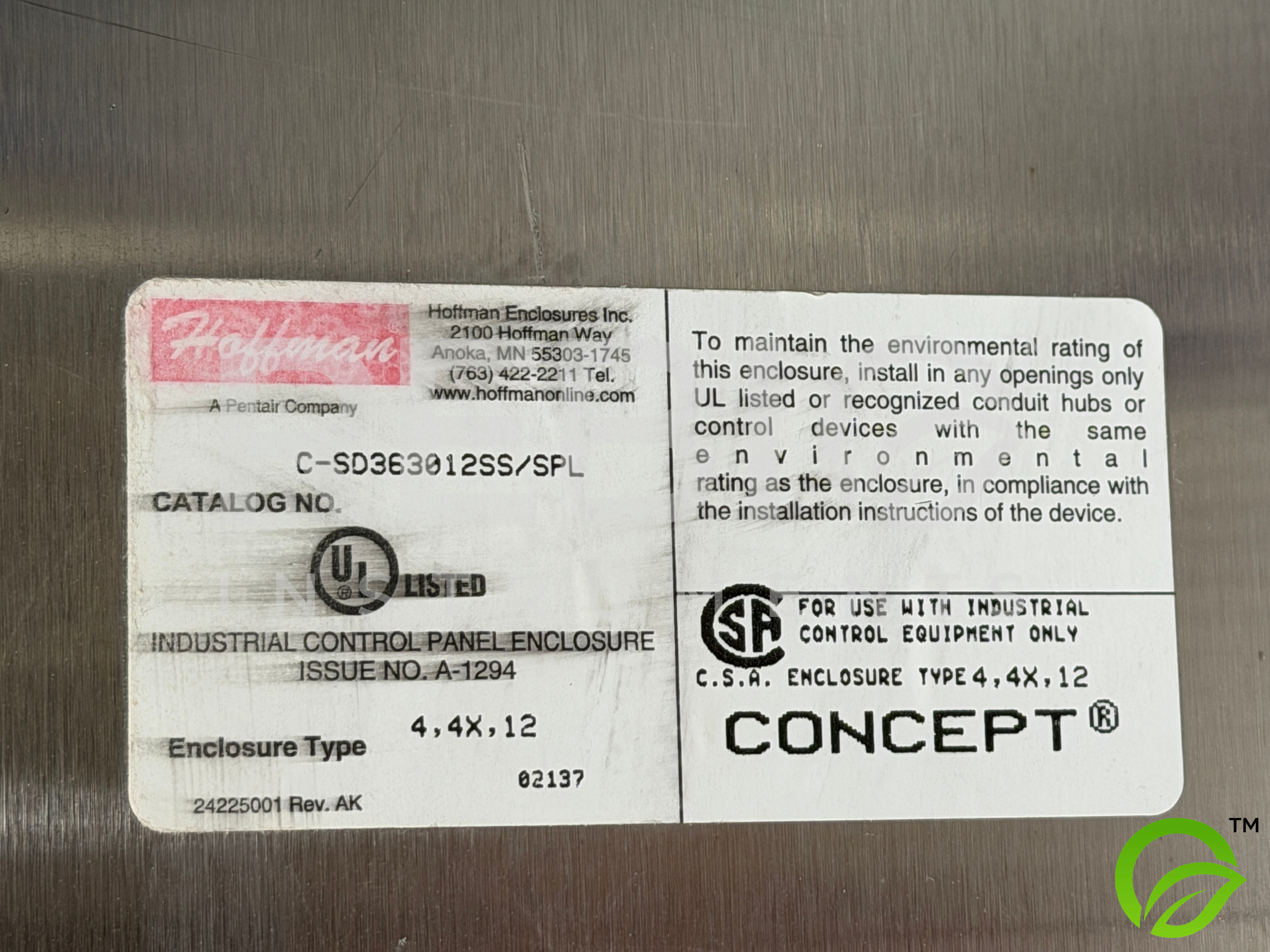

• Hoffman/Pentair Concept stainless steel control panel enclosure (NEMA 4/4X/12, UL Listed Industrial Control Panel)
• Local operator panel with Power On indicator and E-Stop Reset
• Sanitary tri-clamp piping throughout
• 304 stainless steel skid frame with mobile castors and leveling feet
